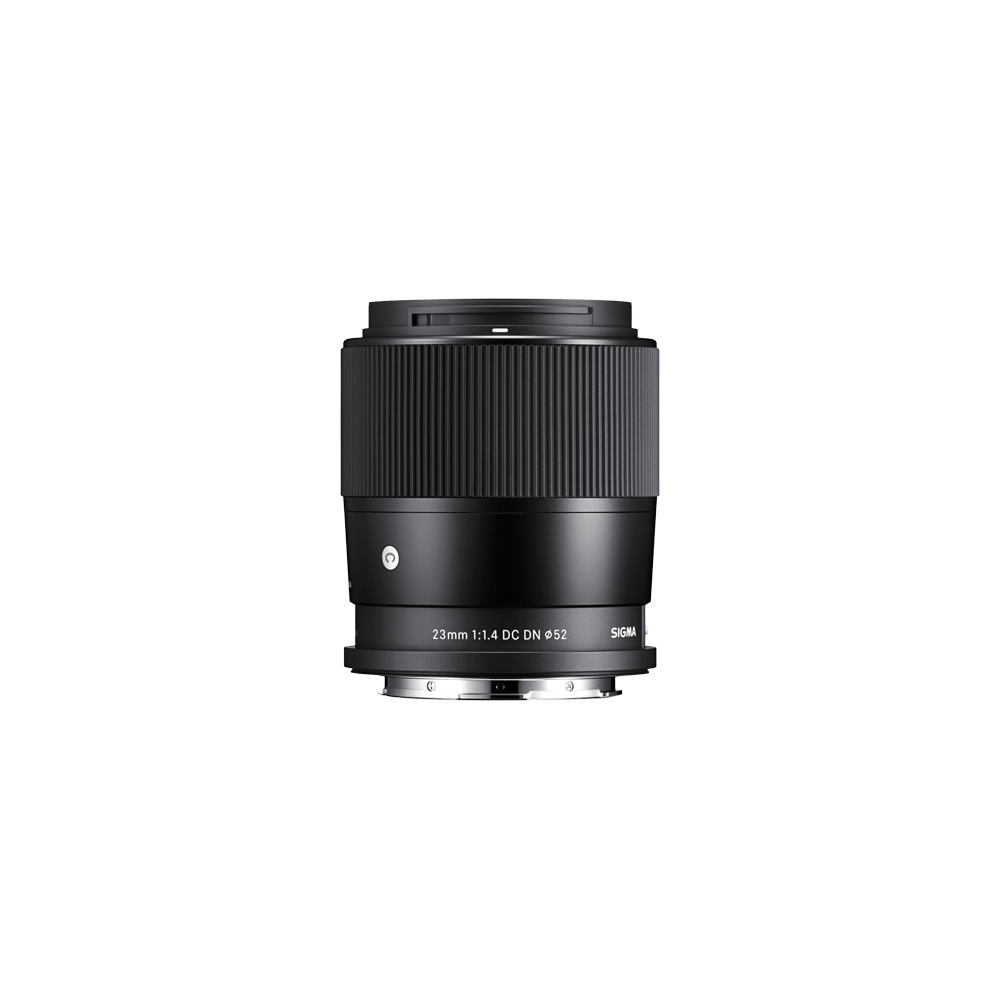

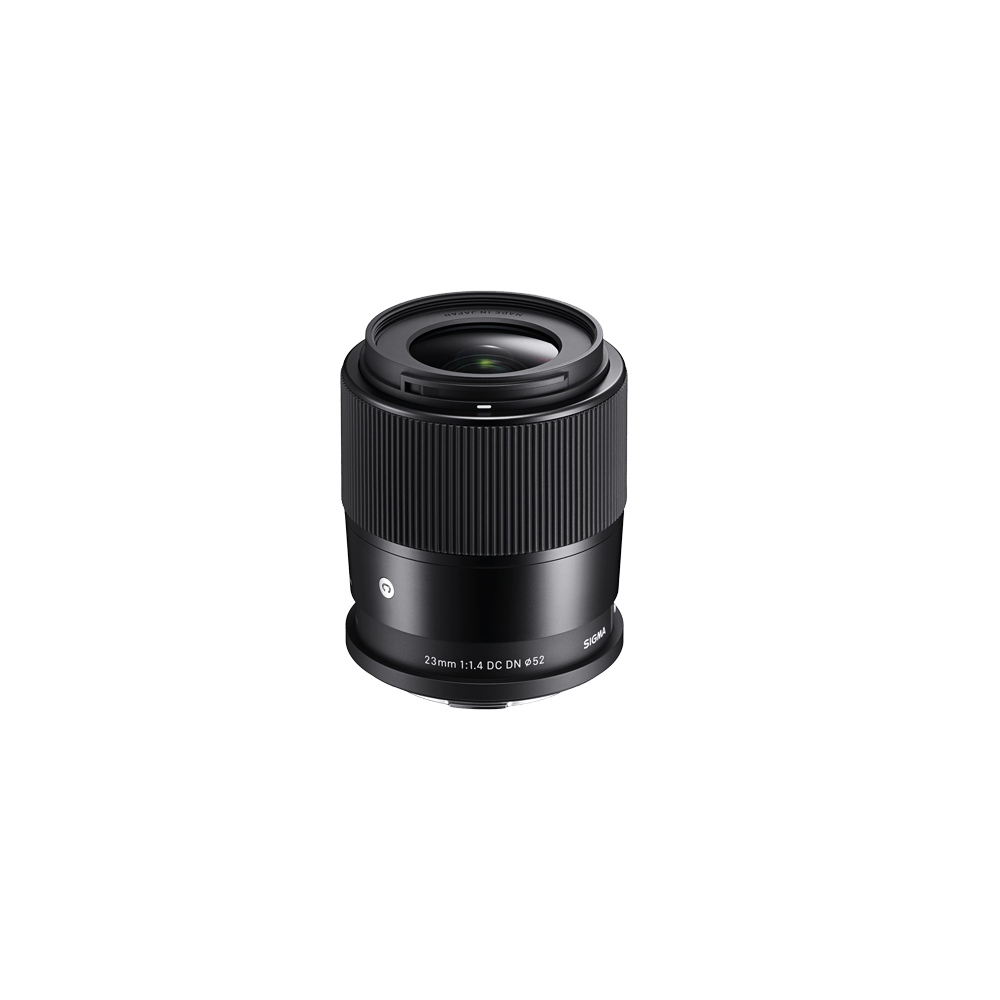

CONTEMPORARY 23mm F1.4 DC DN

contemporary

23mm F1.4 DC DN

Available mounts

L-Mount

Sony E-mount

FUJIFILM X Mount

Canon RF Mount

Canon EF-M mount

Designed for crop sensor mirrorless
Classic wide-angle focal length (35mm equivalent)
Ultra-fast F1.4 maximum aperture
Outstanding low-light performance
Superb sharpness at all apertures
Minimizes optical aberrations
Quiet and fast stepping motor
Dust and splash resistant mount
Minimized flare and ghosting
Compatible with Lens Aberration Correction*
Made in Japan

*Function available on supported cameras only. Available corrections / functionality may vary depending on camera model.

SPECIFICATIONS

FEATURES

LENS CONSTRUCTION / MTF

TECHNOLOGY

SAMPLE IMAGES

Camera Type Mirrorless

Corresponding Mount L-Mount, Sony E-mount, FUJIFILM X Mount, Canon RF Mount

Sensor size APS-C [DC]

Lens Construction 13 elements in 10 groups (3 SLD and 2 aspherical elements）

Angle of View 63.4°

Number of Diaphragm Blades 9 (rounded diaphragm)

Minimum Aperture F16

Minimum Focusing Distance 25cm / 9.8in.

Maximum Magnification Ratio 1:7.3

Filter Size φ52mm

Dimensions (Diameter × Length) L-Mount：φ65.8mm × 76.9mm / φ2.6in. × 3.0in.
Sony E-mount：φ65.8mm× 78.9mm / 2.6in. × 3.1in.
FUJIFILM X Mount：φ65.8mm × 79.2mm / 2.6in. × 3.1in.
Canon EF-M mount：φ69.0mm × 76.9mm / φ2.7in. × 3.0in.
Canon RF Mount：φ69.0mm × 76.9mm / φ2.7in. × 3.0in.

Weight (g) L-Mount：340g / 12.0oz.
Sony E-mount：330g / 11.6oz.
FUJIFILM X Mount：335g / 11.8oz.
Canon EF-M mount：345g / 12.2oz.
Canon RF Mount：345g / 12.2oz.

Edition Number C023

The three-digit code on the surface of the lens is to indicate the year the lens was first released. (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

Supplied Accessories Petal Type Lens Hood LH554-01
FRONT CAP LCF-52 III
REAR CAP LCR II

EAN L-Mount：00-85126-34869-4
Sony E-mount：00-85126-34865-6
FUJIFILM X Mount：00-85126-34875-5
Canon EF-M mount：00-85126-34872-4
Canon RF Mount：00-85126-34872-4

Camera Compatibility LINK

* L-Mount is a registered trademark of Leica Camera AG.
* Sony E-mount is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
* Canon RF Mount is developed, manufactured and sold under license from Canon Inc.

Camera	SONY α7R IV
Shutter Speed	1/400s
Lens F Number	F1.4
ISO	200
Focal Length	23mm
Photographer	Masato Ono

Download

Camera	SIGMA fp
Shutter Speed	1/6000s
Lens F Number	F1.4
ISO	100
Focal Length	23mm
Photographer	Noriko Yamaguchi

Download

Camera	SIGMA fp
Shutter Speed	1/100s
Lens F Number	F1.4
ISO	400
Focal Length	23mm
Photographer	Noriko Yamaguchi

Download

Camera	SONY α7R V
Shutter Speed	1/6400s
Lens F Number	F5.6
ISO	160
Focal Length	23mm
Photographer	Yoko Ono

Download

Camera	SONY α7R IV
Shutter Speed	1/2000s
Lens F Number	F1.4
ISO	200
Focal Length	23mm
Photographer	Masato Ono

Download

Camera	SIGMA fp L
Shutter Speed	1/125s
Lens F Number	F1.4
ISO	640
Focal Length	23mm
Photographer	Huang Jian Liang

Download

Camera	SONY α7R V
Shutter Speed	1/40s
Lens F Number	F2.8
ISO	640
Focal Length	23mm
Photographer	Yoko Ono

Download

Camera	FUJIFILM X-S10
Shutter Speed	1/200s
Lens F Number	F2
ISO	800
Focal Length	23mm
Photographer	Meg Loeks

Download

Camera	FUJIFILM X-S10
Shutter Speed	1/400s
Lens F Number	F1.6
ISO	160
Focal Length	23mm
Photographer	Meg Loeks

Download

Camera	FUJIFILM X-S10
Shutter Speed	1/450s
Lens F Number	F1.4
ISO	160
Focal Length	23mm
Photographer	Nick Vrona

Download

Camera	FUJIFILM X-H2
Shutter Speed	1/400s
Lens F Number	F1.4
ISO	160
Focal Length	23mm
Photographer	Tadateru Takahashi

Download

Camera	FUJIFILM X-H2
Shutter Speed	1/1600s
Lens F Number	F1.6
ISO	125
Focal Length	23mm
Photographer	Tadateru Takahashi

Download

Camera	FUJIFILM X-H2
Shutter Speed	1/100s
Lens F Number	F10
ISO	125
Focal Length	23mm
Photographer	Tadateru Takahashi

Download

Lens construction

SLD glass Aspherical lens
MTF Chart

The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.

*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
Spatial frequency

S: Sagittal Line

M: Meridional Line
10lp/mm
30lp/mm
Diffraction MTF
$Diffraction MTF chart$
Geometrical MTF

Large aperture F1.4 brightness and excellent resolution from maximum aperture

The Sigma 23 mm F1.4 DC DN | Contemporary has an easy-to-use angle of view equivalent to 35 mm in 35 mm format, as well as the brightness of a large F1.4 aperture and high descriptive power. The optics is composed of 13 elements in 10 groups, including 3 SLD glass elements and 2 aspherical lens elements, to achieve sharp, clear images. The lens delivers excellent resolving power from the maximum aperture. Furthermore, the large F1.4 aperture allows for large, beautiful bokeh effects. The compact, palm-size body allows you to enjoy the rich descriptive power of mirrorless cameras. Careful countermeasures against flare and ghosting enable clear shooting even in backlit environments.
Compact body optimized for APS-C mirrorless cameras

To take advantage of the mobility of APS-C mirrorless cameras, the lens body is compact and lightweight (340 g*, 76.9 mm length, 52 mm filter diameter). The high-precision machining technology of Sigma’s Aizu factory enables excellent optical performance and compactness. A quiet, high-speed stepping motor ensures fast and accurate autofocus.

*Figures for L-Mount.
Support for switching between linear and non-linear focus ring settings (for L-Mount only)

For L-Mount cameras, it is possible to switch to “linear focus,” where the focus shifts by a fixed amount according to the rotation angle of the focus ring.

*Only for compatible L-Mount bodies.
Expands the variety of APS-C format F1.4 prime lenses

The Sigma Contemporary line offers a wide variety of APS-C format F1.4 prime lenses that combine superior resolution with compactness and light weight. Mix and match to build a portable system without sacrificing image quality.

16 mm F1.4 DC DN

Lens Construction:
16 elements in 13 groups

Angle of View: 83.2°

Number of Diaphragm Blades:
9 (Rounded diaphragm)

Minimum Aperture: 16

Minimum Focusing Distance:
25 cm (9.8 in.)

Maximum Magnification Ratio:
1:9.9

Filter Size: Φ67 mm

Diameter: φ72.2 mm (φ2.8 in.)

Length: 90.3 mm (3.6 in.)

Weight: 415 g (14.6 oz.)

23 mm F1.4 DC DN

Lens Construction:
13 elements in 10 groups

Angle of View: 63.4°

Number of Diaphragm Blades:
9 (Rounded diaphragm)

Minimum Aperture: 16

Minimum Focusing Distance:
25 cm (9.8 in.)

Maximum Magnification Ratio:
1:7.3

Filter Size: Φ52 mm

Diameter: φ65.8 mm (φ2.6 in.)

Length: 76.9 mm (3.0 in.)

Weight: 340 g (12.0 oz.)

30 mm F1.4 DC DN

Lens Construction:
9 elements in 7 groups

Angle of View: 50.7°

Number of Diaphragm Blades:
9 (Rounded diaphragm)

Minimum Aperture: 16

Minimum Focusing Distance:
30 cm (11.8 in.)

Maximum Magnification Ratio:
1:7

Filter Size: Φ52 mm

Diameter: φ65.4 mm (φ2.6 in.)

Length: 71.3 mm (2.8 in.)

Weight: 280 g (9.9 oz.)

56 mm F1.4 DC DN

Lens Construction:
10 elements in 6 groups

Angle of View: 28.5°

Number of Diaphragm Blades:
9 (Rounded diaphragm)

Minimum Aperture: 16

Minimum Focusing Distance:
50 cm (19.7 in.)

Maximum Magnification Ratio:
1:7.4

Filter Size: Φ55 mm

Diameter: φ66.5 mm (φ2.6 in.)

Length: 57.5 mm (2.3 in.)

Weight: 285 g (10.1 oz.)

*The figures for L-Mount.

A prime lens like a longtime friend

The wide-angle lens ideal for APS-C mirrorless cameras joins the Contemporary line. High optical performance, F1.4 brightness, and compact enough to carry around every day.

With an easy-to-use angle of view of 35mm*, high optical performance, the brightness of a large F1.4 aperture, and a compact and lightweight lens body, Sigma’s experience accumulated in the Contemporary line has culminated in a lens that is ideal for use with APS-C mirrorless cameras. The lens offers excellent resolution from maximum aperture and the rich bokeh effects thanks to its F1.4 brightness. The lens demonstrates its descriptive power in a wide range of applications, including landscapes, portraits, and tabletop photography. In order to take advantage of the high mobility of mirrorless cameras, compactness of the lens body was also pursued. The Sigma’s Contemporary lineup includes several compact and lightweight F1.4 prime lenses in the APS-C format, which are surprisingly compact to carry around. If you want to keep your equipment light and small, but not compromise on image rendering performance, this lens is sure to meet your needs, and will be a lens you will never want to let go.

*35mm equivalent
