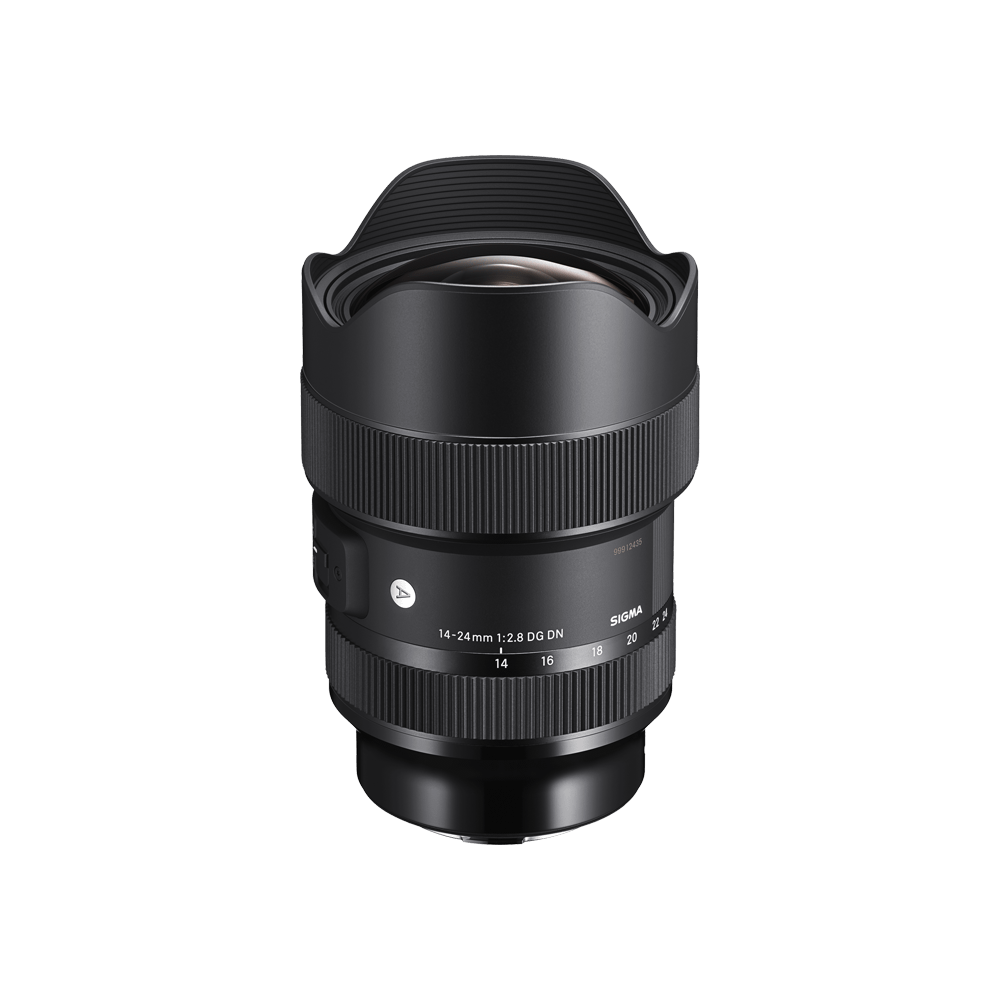

14-24mm F2.8 DG DN 14-24mm F2.8 DG DN
14-24mm F2.8 DG DN
14-24mm F2.8 DG DN

art

14-24mm F2.8 DG DN

Available mounts

  • Unprecedented high-resolution image quality
  • Uniform rendering performance to the edges
  • Features exclusive low dispersion glass elements
  • Stepping motor for high speed, quiet AF
  • Dust and splash resistant structure
  • Water and oil repellent coating
  • Rear filter holder as a standard accessory
  • NPC (Nano Porous Coating)
  • Designed to minimize flare and ghosting
  • Compatible with Lens Aberration Correction*
  • Made in Japan

SPECIFICATIONS

FEATURES

LENS CONSTRUCTION / MTF

TECHNOLOGY

SAMPLE IMAGES

Camera Type Mirrorless
Corresponding Mount L-Mount, Sony E-mount
Sensor size Full-frame [DG]
Lens Construction 18 elements in 13 groups
Angle of View 114.2 - 84.1°
Number of Diaphragm Blades 11 (Rounded diaphragm)
Minimum Aperture F22
Minimum Focusing Distance 28cm / 11in.
Maximum Magnification Ratio 1:7.3
Filter size -
Dimensions (Diameter × Length) L-Mount: φ85.0mm × 131.0mm / φ3.3in. × 5.2in.
Sony E-mount: φ85.0mm × 133.0mm / φ3.3in. × 5.2in.
Weight (g) L-Mount: 795g / 28.0oz.
Sony E-mount: 795g / 28.0oz.
Edition Number A019

The three-digit code on the surface of the lens is to indicate the year the lens was first released. (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)
Supplied Accessories Case, COVER LENS CAP LC850-01, REAR CAP LCR II
EAN L-Mount: 00-85126-21369-5
Sony E-mount: 00-85126-21365-7
Camera Compatibility LINK
Specification info * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

* L-Mount is a registered trademark of Leica Camera AG.

* Although dust and splash resistant structure allows the lens to be used in light rain, it is not the same as being waterproof.
Sample image by Shigemi Numazawa
CameraSONY α7R III
Shutter Speed30s
Lens F NumberF2.8
ISO3200
Focal Length14mm
PhotographerShigemi Numazawa
Download
Sample image by Shigemi Numazawa
CameraSONY α7R IV
Shutter Speed30s
Lens F NumberF2.8
ISO2500
Focal Length14mm
PhotographerShigemi Numazawa
Download
Sample image by Yang Su Tie
CameraSIGMA fp L
Shutter Speed15s
Lens F NumberF16
ISO100
Focal Length16mm
PhotographerYang Su Tie
Color ModeLandscape
Download
  • Lens construction

    Lens construction diagram
    FLD glass SLD glass Aspherical lens
  • MTF Chart

    The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
    The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.

    *The MTF chart depicts the result at the wide-open aperture.
    *For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
    *The spatial frequency indicates the variation on the image plane before distortion correction is performed.

  • Spatial frequency

    S: Sagittal Line

    M: Meridional Line

  • 10lp/mm


  • 30lp/mm


  • Diffraction MTF

    Diffraction MTF chart
  • Geometrical MTF

    Geometrical MTF chart 1
  • Geometrical MTF chart 2
  • Geometrical MTF chart 3
  • Newly developed high-performance lens series for full-frame mirrorless cameras

    With mirrorless cameras emerging at an accelerated pace, expectations towards lenses suited for high-performance full-frame mirrorless cameras are growing. Unfortunately, many photographers may feel that they have little choices for mirrorless lens systems in terms of performance, size, extensive lineup, and due to the burden of having to use multiple systems. Sigma has thus developed and proposes this new full-frame mirrorless lens series as the optimal solution to this challenge.

    Sigma will develop interchangeable lenses with unprecedented specifications and performance by designs that benefit from the short flange focal length feature of mirrorless cameras while retaining the concepts of “Contemporary,” “Art,” and “Sports.” We will announce three models as the first lenses from this series.

    45mm F2.8 DG DN

    Contemporary
    45mm F2.8 DG DN


    Compact size is realized while maintaining high image quality and is compatible with full-frame mirrorless cameras. This prime lens refines the concept of the Contemporary line.

    35mm F1.2 DG DN

    Art
    35mm F1.2 DG DN


    The world’s first* 35mm F1.2 as L-Mount and Sony E-mount lens for full-frame mirrorless system. The high image quality of the Art line that pursues ultimate performance is realized by F1.2 maximum aperture. * As an autofocus lens

    14-24mm F2.8 DG DN

    Art
    14-24mm F2.8 DG DN


    Large-diameter, ultra-wide-angle zoom lens for full-frame mirrorless cameras.
    While pursuing the ultimate image quality of the Art line, the size is reduced thanks to the exclusive design for mirrorless cameras.

  • High-resolution image quality developed with exclusive low dispersion glass elements and NPC (Nano Porous Coating)

    One FLD glass and five SLD glass elements are appropriately arranged to suppress chromatic aberration to the edge of the frame. Three aspherical lenses, including a large-diameter aspherical lens at the foremost surface, are used to effectively minimize coma flare, etc., thereby achieving mind-blowing resolution.

    High resolution elements
  • Sigma’s unique coating technology Nano Porous Coating

    The super multi-layer coating is combined with Sigma’s unique coating technology “NPC (Nano Porous Coating)”. The lens has been designed to be less susceptible to strong incident light such as backlight.

    “NPC (Nano Porous Coating)” incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

    Nano Porous Coating
  • Substantial functions enable user confidence, even in tough environments

    Incorporating a stepping motor enables the high speed, quiet AF drive. Shooting is comfortable even in target AF such as Face/Eye Detection AF and during video shooting. The AFL button which can be assigned with various functions widens the range of operations available on the lens. Furthermore, the lens features a dust and splash resistant structure along with a water- and oil-repellent coating on the frontmost surface of the lens, which further supports shooting in various environments.

    *1 Function available on supported cameras only. Available corrections may vary depending on the camera model.
    *2 Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

    Weather resistance and AF
  • Rear filter holder as a standard accessory

    The lens comes with a rear filter holder equipped with a fall prevention lock for attaching sheet type rear filters for shooting starry skies.

    Rear filter holder
  • Designed to minimize flare and ghosting

    From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.

  • Rounded diaphragm

    The 11-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.

  • Compatible with Lens Aberration Correction

    Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

    Note:
    ・Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
    ・On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’(AUTO).

  • High-precision, rugged brass bayonet mount

    The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

Ultimate large-diameter,
wide-angle zoom lens optimized
for full-frame mirrorless cameras
−“The definitive lens
for astrophotography”
with astonishing resolution.

Many photographers like to use low sensitivity shooting to minimize noise as much as they can. Particularly in the photography of starry skies, bright wide-angle lenses are often selected because they can efficiently collect weak light. The 14-24mm F2.8 DG DN | Art has been developed as the ultimate large-diameter, wide-angle zoom lens by optimizing the standard specifications for photographing starry skies for full-frame mirrorless cameras. The uniform rendering performance and outstanding resolution to the edge of the frame make it the “definitive lens for astrophotography.” By utilizing the characteristics of the short flange focal length, this new-generation large-diameter zoom lens combines both compact body and unprecedented high-resolution image quality.

About Product Name: Product name includes “DG” when the lens is designed to deliver the ultimate in performance on cameras with full-frame sensors, and “DN” when the lens design is optimized for mirrorless cameras with the short flange focal length.
